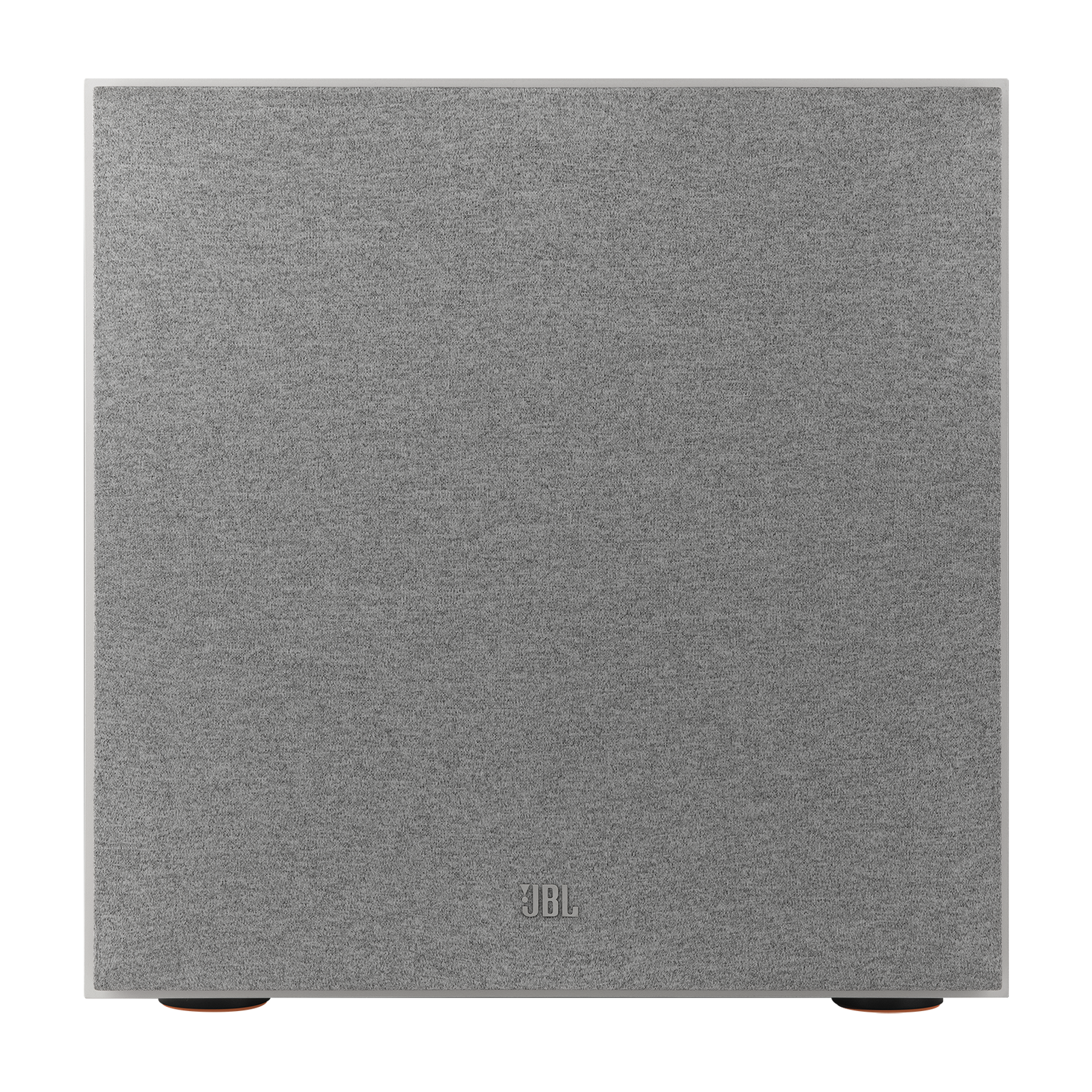

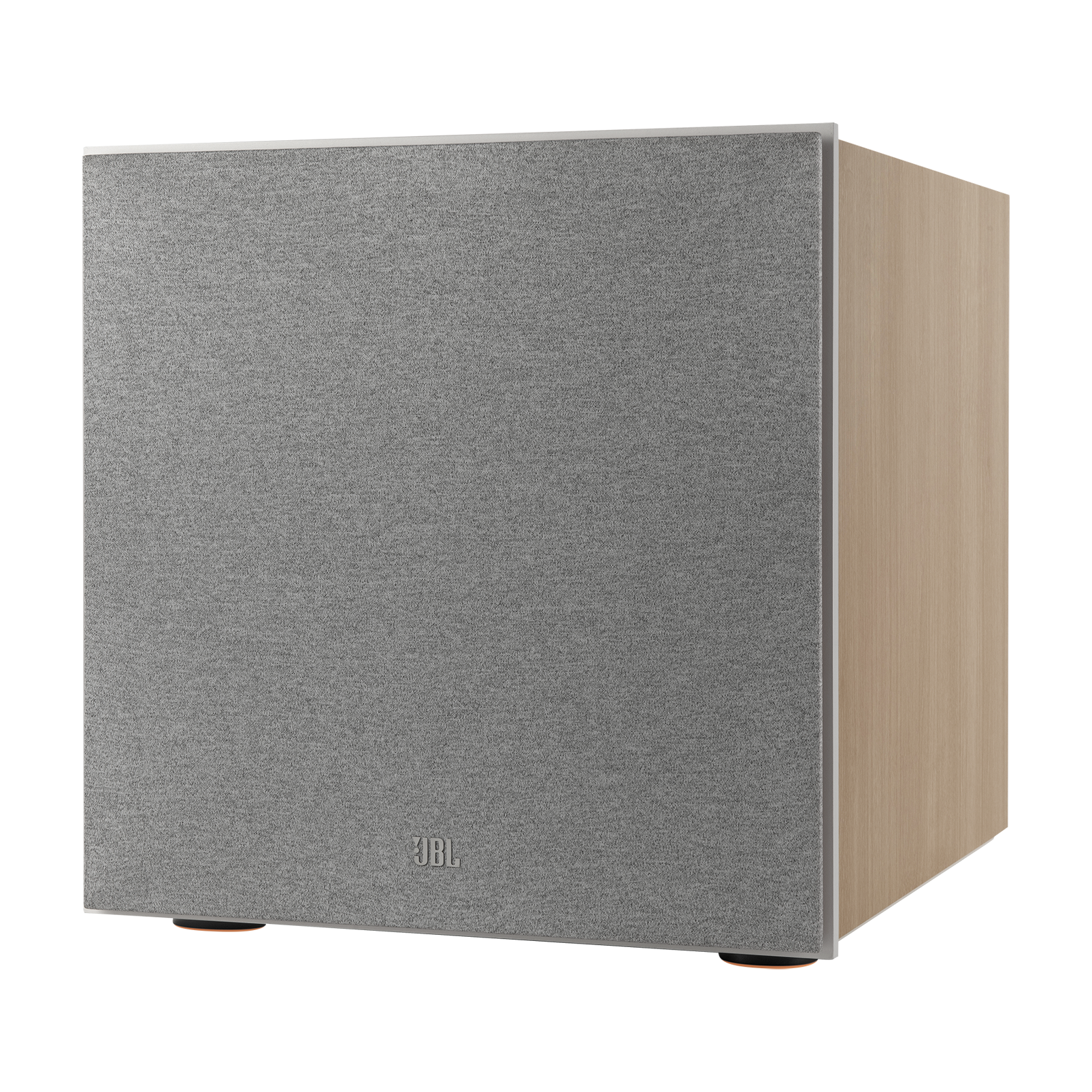

Stage 220P

General Specifications

Type

Powered Subwoofer

Low Frequency Driver

12-inch (300mm) Polycellulose Ribbed High Excursion

Amplifier Power

250W RMS (500W Dynamic)

Frequency Response ± 6dB

26Hz-150Hz

Crossover Frequencies

50Hz-150Hz (variable) 24dB/octave

Controls

35Hz-150Hz

Controls

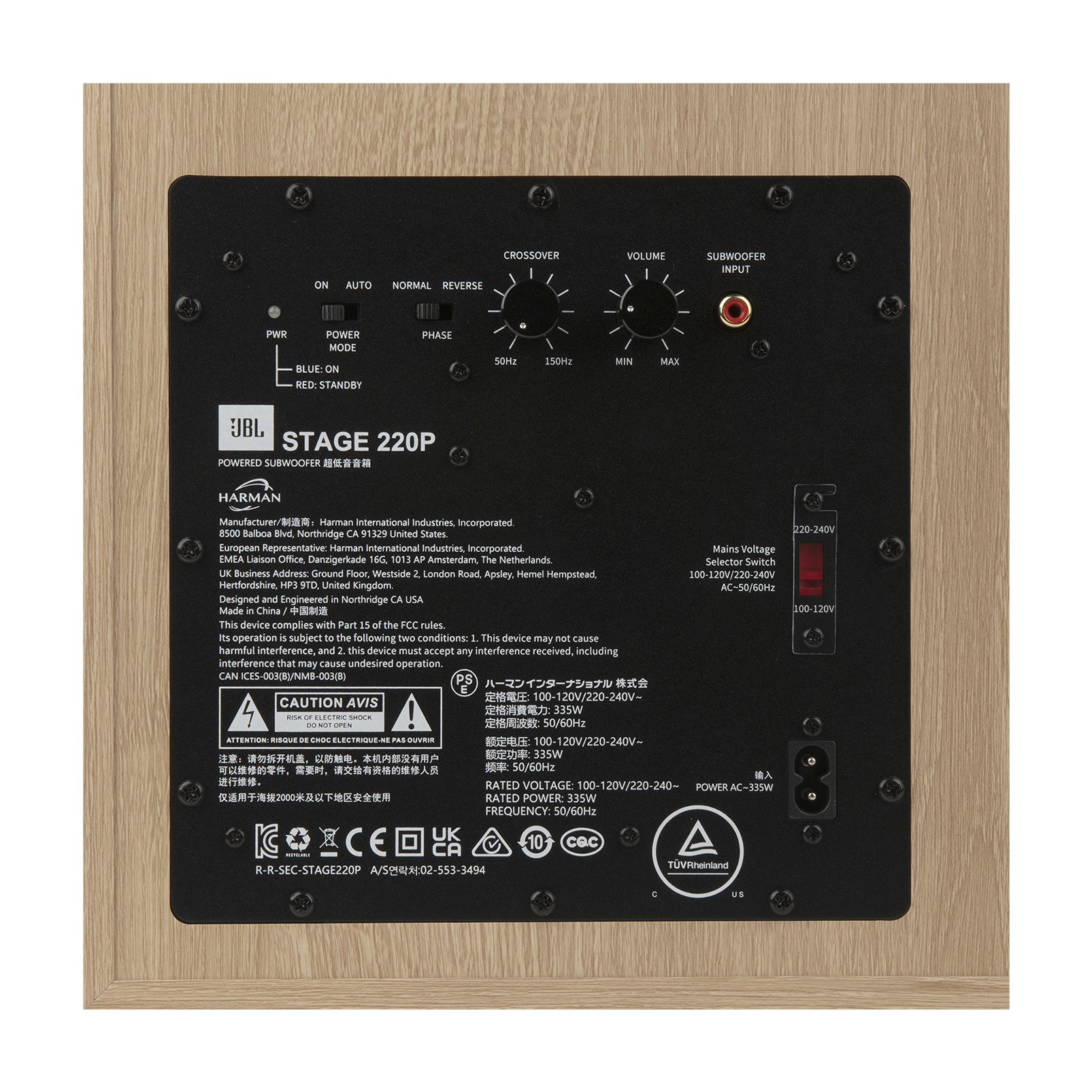

Auto Power, Crossover, Level, Phase

Inputs

One (1) Line-Level LFE Input

Enclosure Tuning

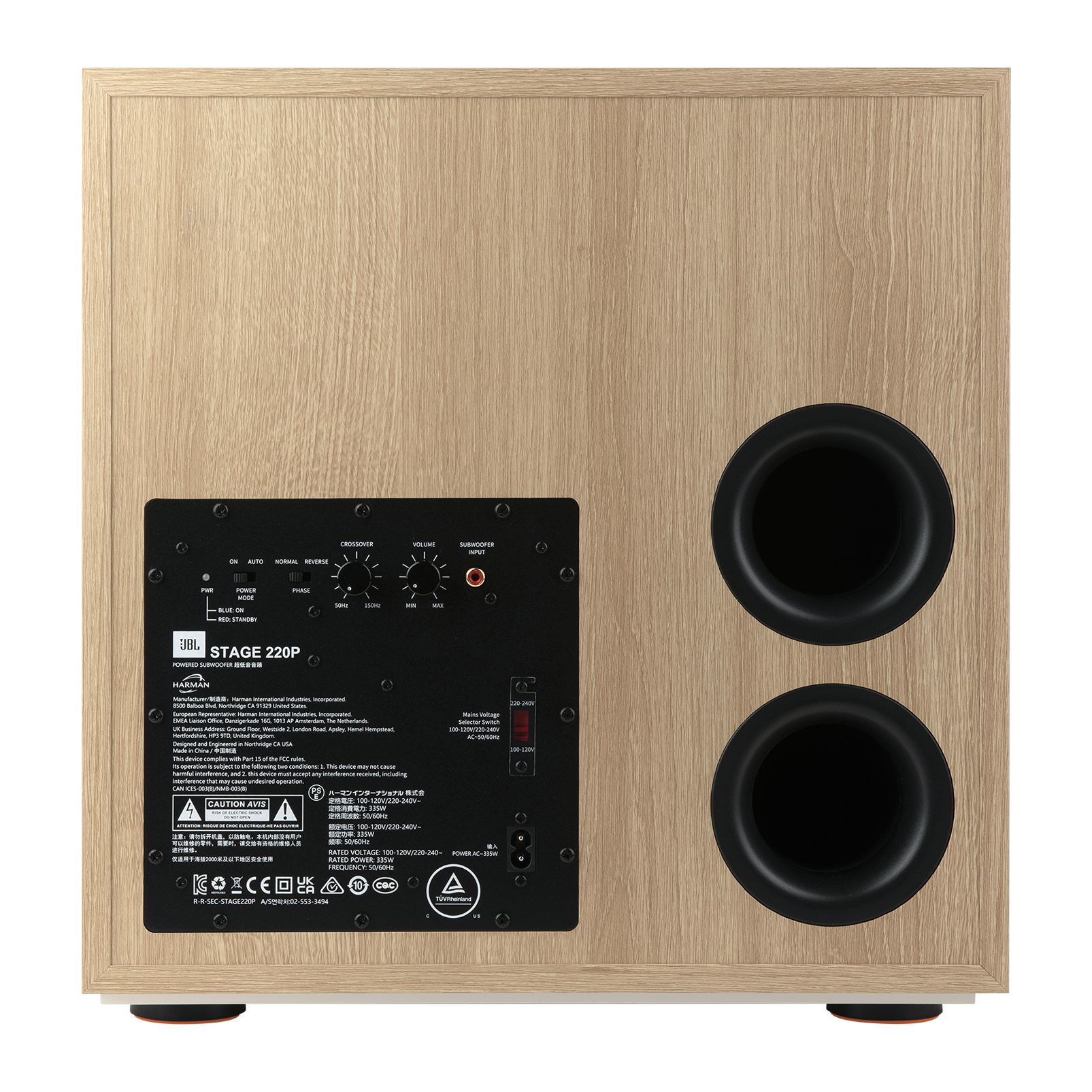

Bass-Reflex via Dual Rear-Firing Tuned Ports

Power Requirements

120V, 60Hz (US) 220-230V, 50/60Hz (EU)

Power Consumption

<0.5W (standby) / 205W/1.6A (max – 230V) / 205W/3.15A (max – 120V)

Dimensions

Dimensions (HxWxD)

16.4in x 15.9in x 17.5in (416mm x 405mm x 444mm)

Product Weight

41.2lbs. (18.7kg)

Shipping Weight

51.4lbs. (23.3kg)

Shipping Units of Measure

Each
