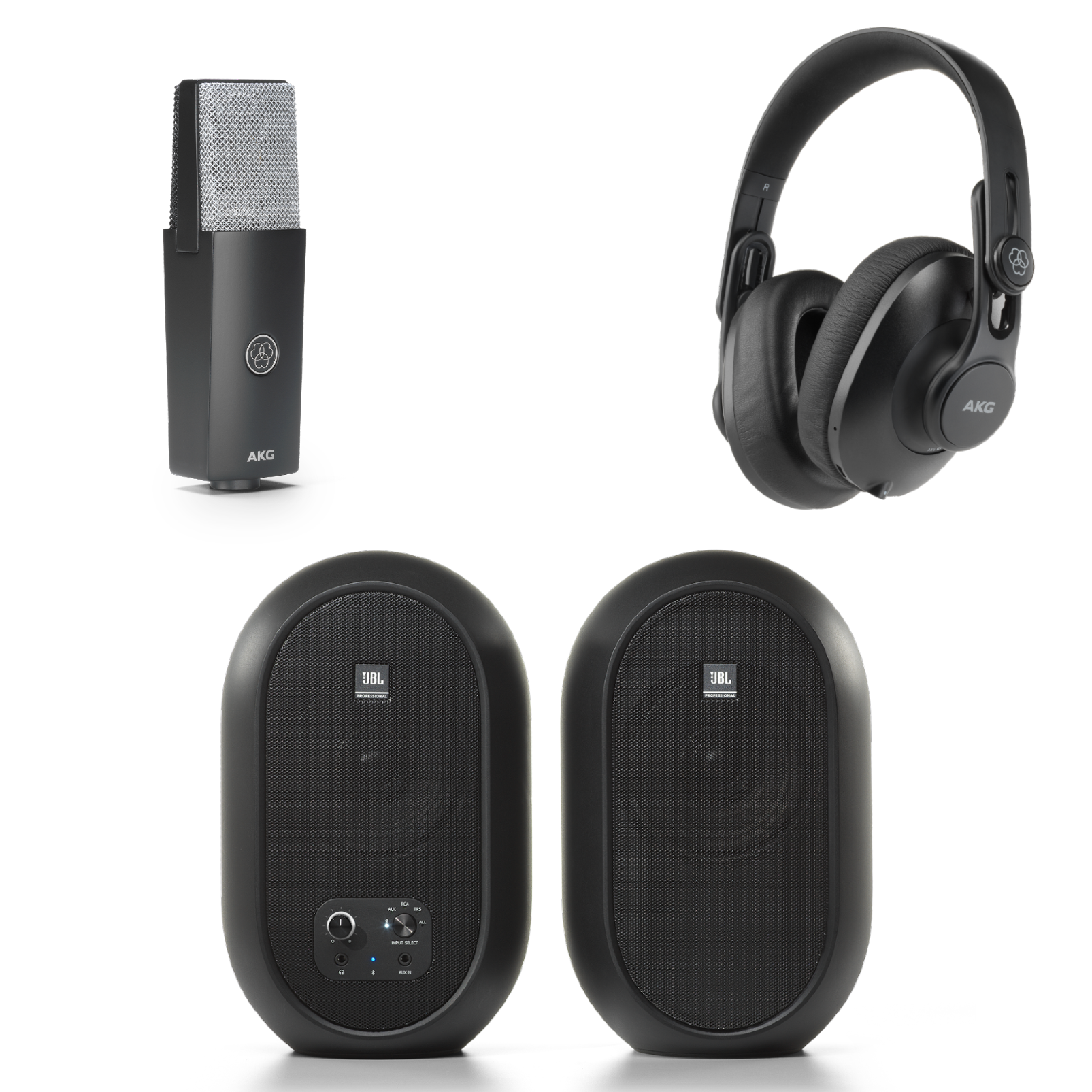

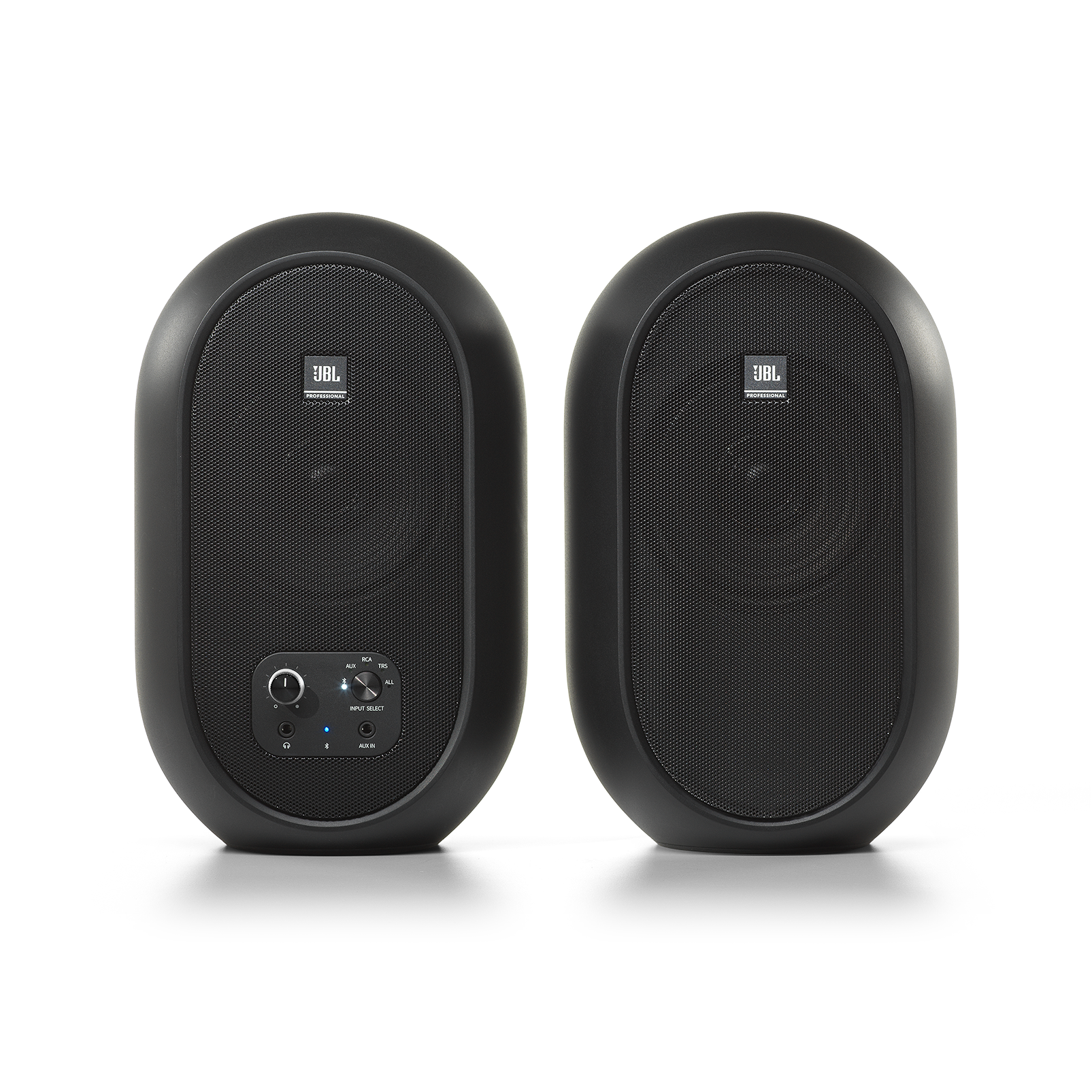

Project Studio Bundle

Device Compatibility

Bluetooth

General Specifications

Bluetooth Version

5.0

Low Frequency Transducer

4.5 in (118 mm)

High Frequency Transducer

0.75 in (19 mm), soft dome

Crossover

1725 Hz, 1st order

Power Amp

60 W (30 W each speaker), Class D

Sensitivity

87 dB SPL @ 1 m with -10 dBV Aux In (Volume = Max)

Maximum Continuous SPL

89 dB

System Peak SPL

102 dB (pink noise, 12 dB crest factor)

Maximum SPL, Momentary Peak

104 dB

Maximum Peak Input Level (-10 dBV / +4 dBu):

+6 dBV / +20.3 dBu

Frequency Range (-3 dB SPL)

88 Hz – 20 kHz

Frequency Range (-10 dB SPL)

60 Hz – 20 kHz

System Rated Impedance

8 Ω

Minimum Impedance

7.8 Ω @ 260 Hz

Cabinet Tuning Frequency

72 Hz

System Distortion Criteria

<10% THD at maximum output with full compressor / limiter engagement

Electrical Distortion Criteria

<0.2%THD @ 1 kHz, 2.83 VRMS output; <1% THD @ 1 kHz, full rated output

Signal to Noise Ratio

75 dBA (A-Weighted), 70 dBr (unweighted), relative to 2.83 VRMS output on HF

Coverage (Horizontal x Vertical)

120o x 60o

Acoustic Test Specification

ATS# 1000340443

Dimensions

Height

9.72 in (247 mm)

Width

6.02 in (153 mm)

Depth

4.88 in (124 mm)

Net Weight

Primary Monitor = 4.54 lb (2.06 kg); Secondary Monitor = 3.81 lb (1.73 kg)

Design

Enclosure Type

Ported

Enclosure Material

ABS with metal grille

Enclosure Finish

Matte black acrylic paint (104-BT) ; Matte white acrylic paint (104-BTW)

Audio Output

System Output Type

1/8 stereo headphone with auto speaker mute

Audio Input

System Input Type

Bluetooth, 1/8 Aux, RCA, 1/4 TRS balanced

Input Selection Options

Bluetooth, Aux, RCA, TRS, All

Powering Interface

System Power Handling

30 W x 2 @ 100 hours, IEC/SMS

System Polarity

EIA

AC Input Voltage

100 – 240 VAC (± 10%), 50/60 Hz

Current Draw

85 watts

Electrical Current Draw (W) Idle 100 / 240 VAC

3.52 / 3.70

Electrical Current Draw (W) Max Power 100 / 240 VAC

80 / 80

Electrical Current Draw (W) Low Power Standby Mode 100 / 240 VAC

0.34 / 0.46
