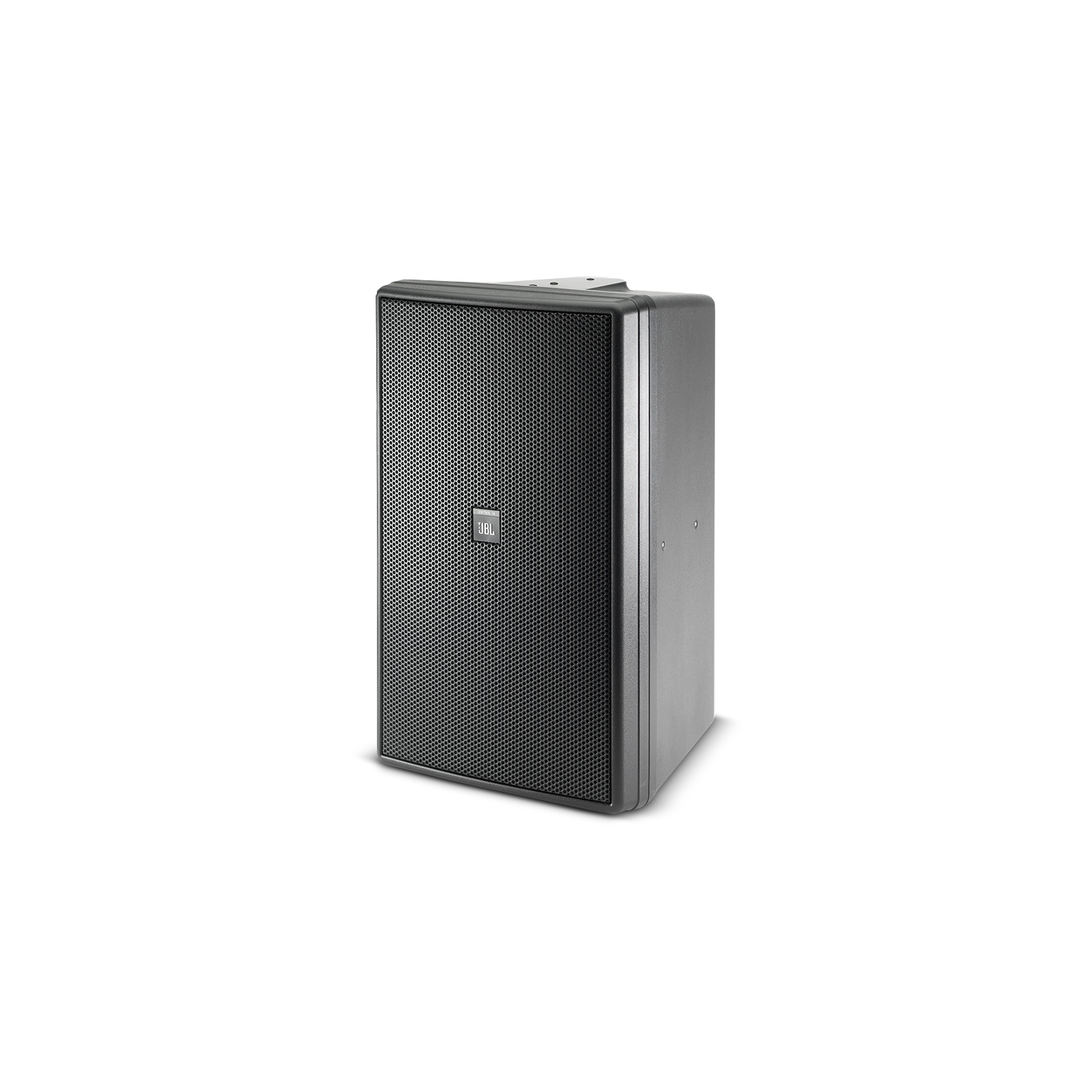

JBL Control 30

General Specifications

Frequency Range (-10 dB)

38 Hz – 17 kHz

Frequency Response (± 3 dB)

40 Hz – 16 kHz

100 Hr Power Capacity

500 Watts Continuous Program Power ; 250 Watts Continuous IEC Pink Noise

Maximum SPL @ 1m

Short-Term = 123 dB; Long-Term = 117 dB

Nominal Sensitivity

93 dB, 2.83V @ 1m (3.3 ft)

Nominal Coverage Angle

120° H x 110° V

Directivity Factor (Q)

5.2, averaged 500 Hz to 10 kHz

Directivity Index (DI)

7.1 dB, averaged 500 Hz to 10 kHz

Nominal Impedance

4 ohms

Crossover Type

3rd order Low Pass LF, 2nd order High Pass/3rd order Low Pass MF, 3rd order High Pass, HF, plus conjugate shaping circuitry.

Transformer Taps

70V = 150W, 75W, 38W, 19W ; 100V = 150W, 75W, 38W ; Thru Position = 4Ω nominal

Low Frequency Transducer

250 mm (10 in) fiberglass/Kevlar? cone with pure butyl rubber surround, 50 mm (2 in) voice coil on fiberglass former, neodymium magnet

Mid Frequency Transducer

125 mm (5 in) anodized aluminum cone with EPDM rubber (Terpolymer of Ethylene and Propylene) surround, 25 mm (1 in) voice coil on fiberglass former

High Frequency Transducer

25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround

Included Accessories

1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 305 mm InvisiBall Hex wrench.

Optional Accessories

MTC-30MK-WH Marine Grille Kit includes grille and protective cover for baffle screws. White only. ; MTC-30CM (-WH) to install speaker down from the ceiling. ; MTC-30UB (-WH) U-Bracket

Dimensions

Dimensions (H x W x D)

593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in)

Weight (ea)

18.9 kg (42 lb)

Shipping Weight (ea)

20.3 kg (45 lb)

Design

Enclosure Material

High Impact PolyStyrene (HIPS) with 10% glass fill plus patentpending internal 5 mm foamed polyurethane secondary mold

Grille

Thermoset composite coated steel, WeatherMax multi-layer foam

Overload Protection

SonicGuard full range power limiting to protect network and transducers.

Environmental

IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.

Termination

Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm)

Safety Agency Rating

Transformer is listed per UL1876
