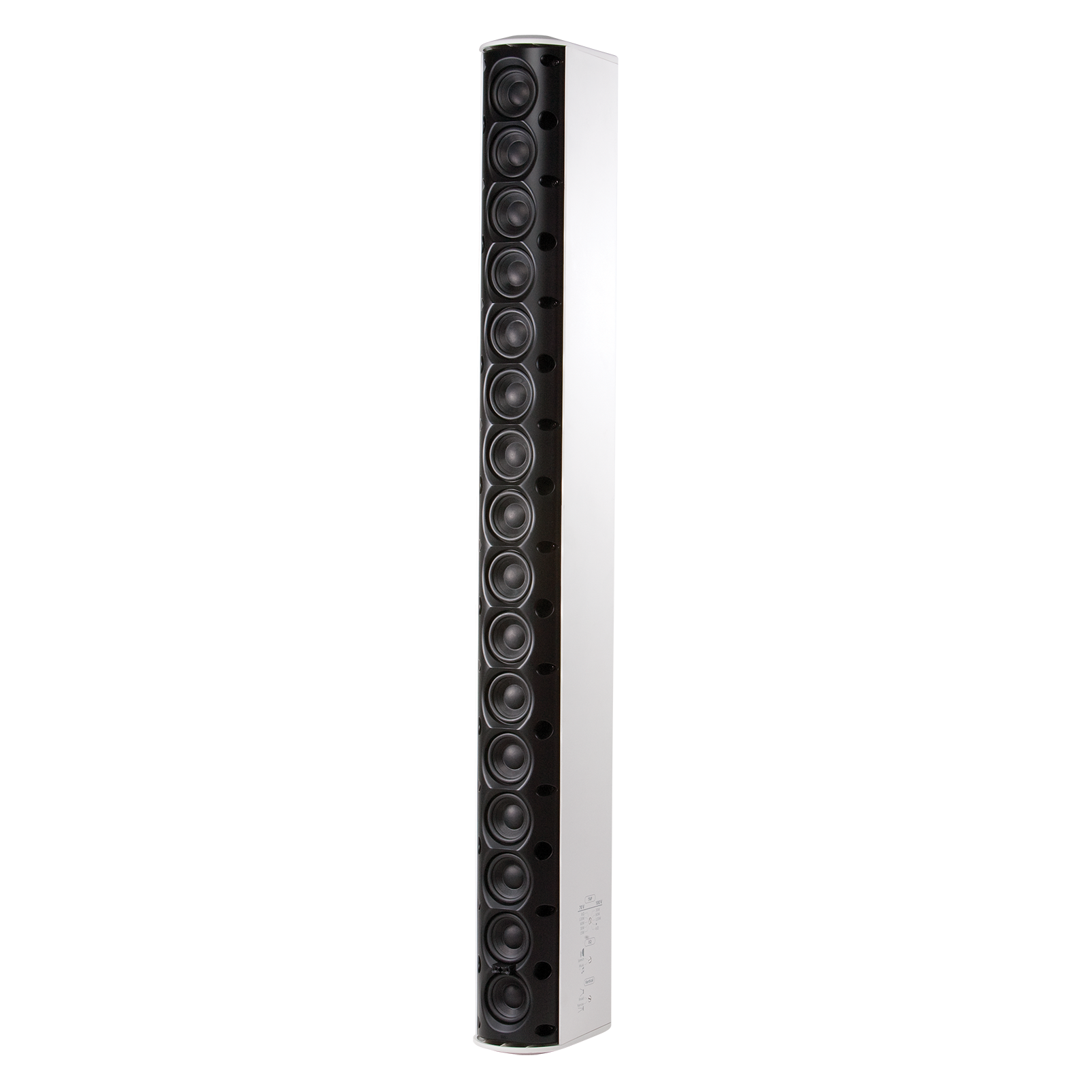

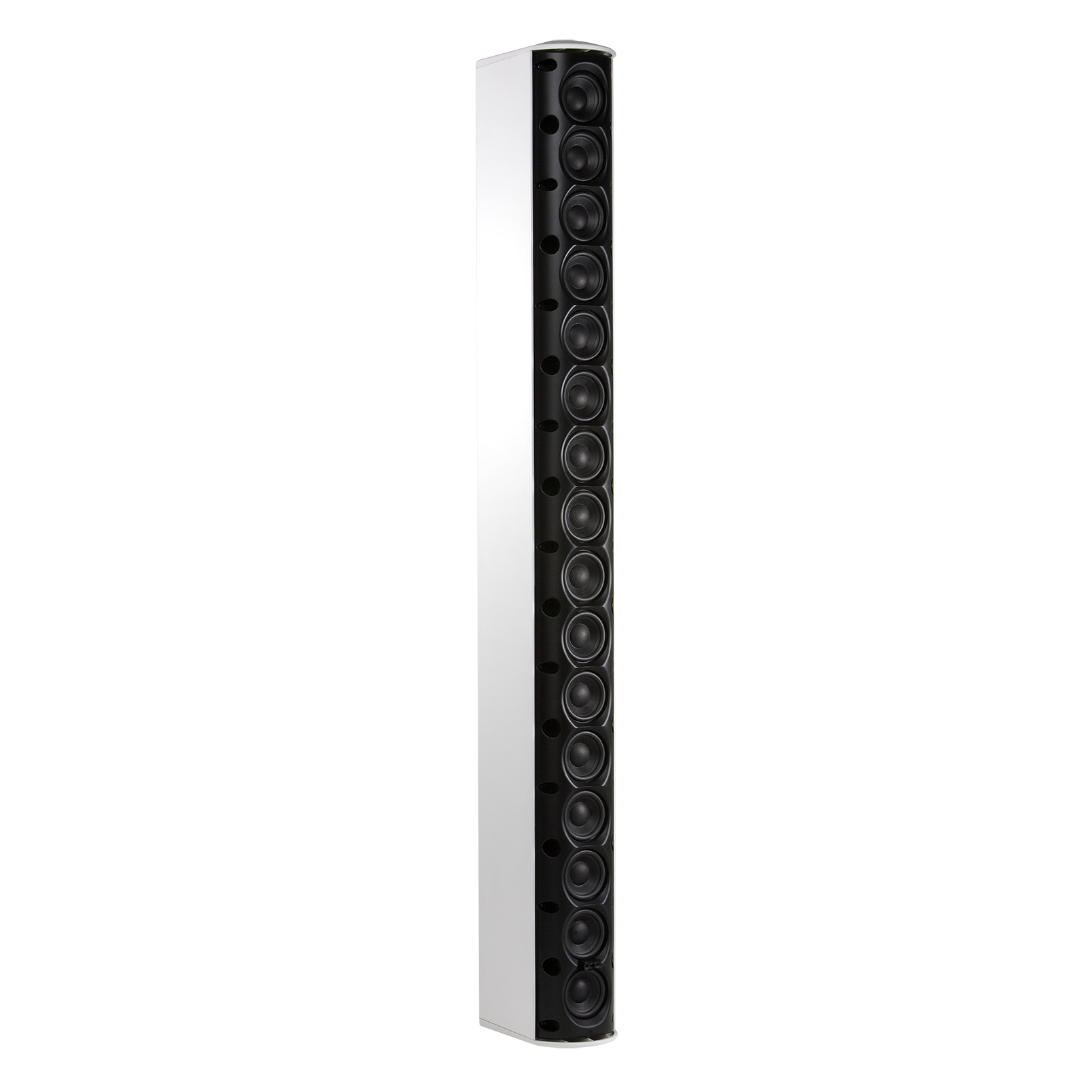

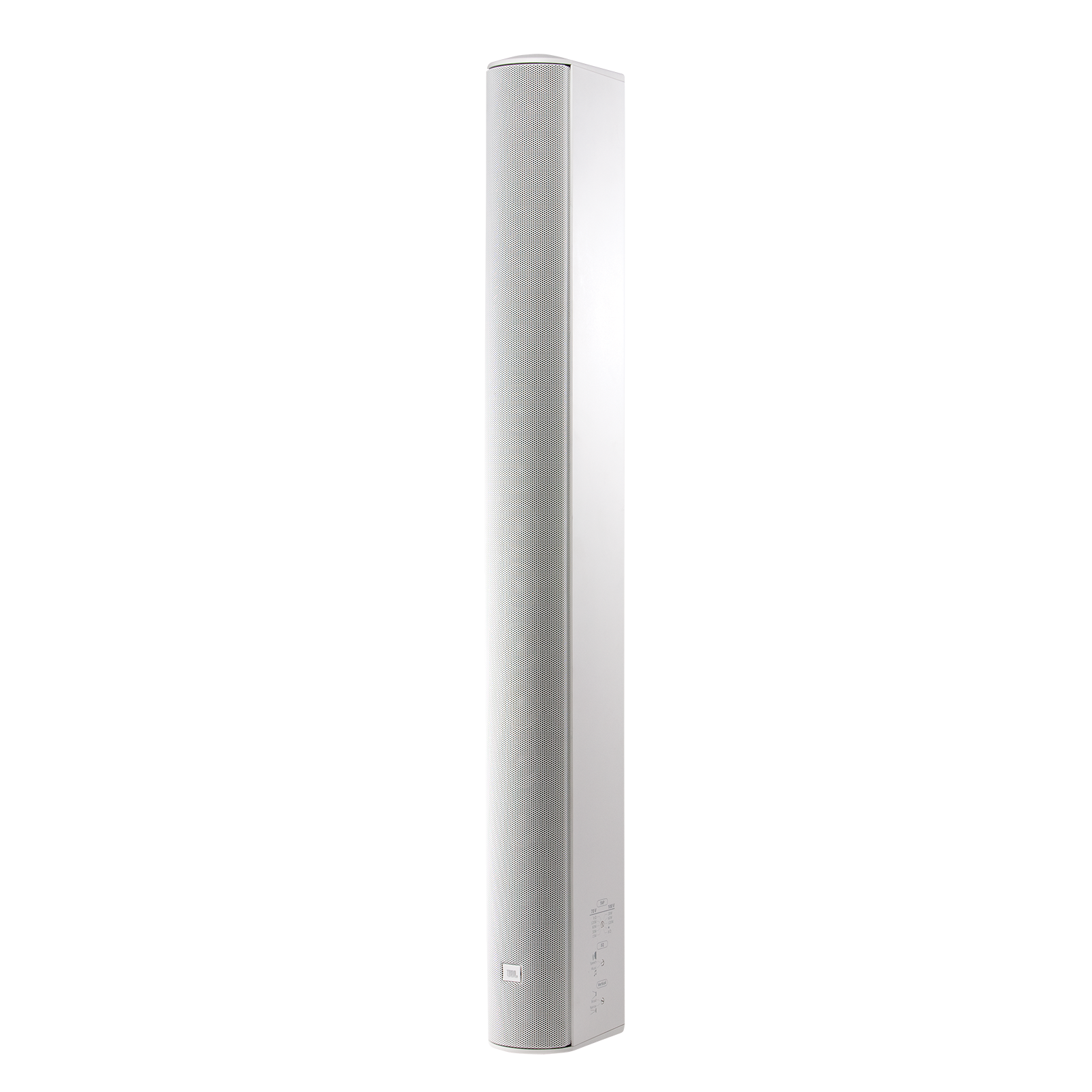

JBL CBT 100LA-1 (B-Stock)

General Specifications

Components

Sixteen 50 mm (2 in) Full-Range

Frequency Range (-10 dB)

80 Hz – 20 kHz

Vertical Coverage (Vertical Narrow Mode)

15° (2 kHz – 16 kHz) (±10°)

Vertical Coverage (Vertical Broad Mode)

40° (1 kHz – 16 kHz) (±10°)

Vertical Coverage (Horizontal)

150° (ave, 1 kHz – 4 kHz, ±20°)

Sensitivity (2.83V@ 1m) Narrow

(speech mode) 96 dB (2 kHz – 14 kHz ) ; (music mode) 93 dB (300 Hz – 18 kHz)

Sensitivity (2.83V@ 1m) Broad

(speech mode) 93 dB (2 kHz – 14 kHz) ; (music mode) 90 dB (300 Hz – 18 kHz)

Nominal Impedance

8 ohms (in Thru mode)

Power Capacity (8 ohm setting)

325 W (1300W peak), 2 hrs ; 200 W (800W peak), 100 hrs

Max SPL Narrow

(speech mode) 121 dB cont ave (127 peak) ; (music mode) 118 dB cont ave (124 peak)

Max SPL Broad

(speech mode) 118 dB cont ave (124 peak) ; (music mode) 115 dB cont ave (121 peak)

70V/100V Transformer Taps

120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch

Outdoor Capability

IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.

Insert Points

18 M6 insert points on back panel.

Mounting

Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt — see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount? 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.

Included Accessories

Swivel (pan) / tilt wall bracket

Optional Accessories

MTC-PC2 terminal panel cover ; MTC-CBT-FM1 flush-mount low-profile wall-mount bracket ; MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand

Dimensions

Height

1000 mm (39.4 in)

Width

98.5 mm (3.8 in)

Depth

153 mm (6.0 in)

Net Weight

7.2 kg (15.8 lb)
